Communication Control Module

Detail Information

Product Description

Detail Information

Product Description

Product introduction

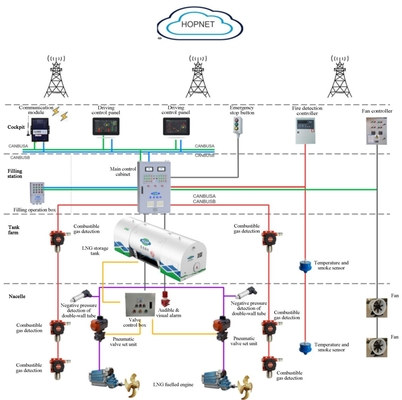

JSD-CCM-01 communication control module is designed and developed by HOUPU SMART IOT TECHNOLOGY CO., LTD. for ship fuel control system. The module can be used to quickly connect RS-232, RS-485 and CAN_Open communication equipment to the CAN-bus field bus, and support a CAN-bus communication rate of 125 kbps~1 Mbps.

Main index parameters

Product size: 156 mm X 180 mm X 45 mm
Ambient temperature: -25°C~70°C
Ambient humidity: 5%~95%, 0.1 MPa
Service conditions: safe area

Features

1. Support two-way data communication between CAN-bus and RS-232, RS-485 and CAN_Open.
2. Support CAN2.0A and CAN2.0B protocols and comply with ISO-11898 specifications.
3. Two CAN-bus communication interfaces are integrated, and the user-defined communication baud rate is supported.
4. Two RS-232, RS-485 and CAN_Open communication interfaces are integrated, and the communication rate can be set.
5. Strong anti-interference capability, level 4 ESD electrostatic protection, level 3 surge protection, level 3 pulse train protection, watchdog of adopting independent hardware.
6. Wide operating temperature range: -25°C~70°C.
