LNG Station

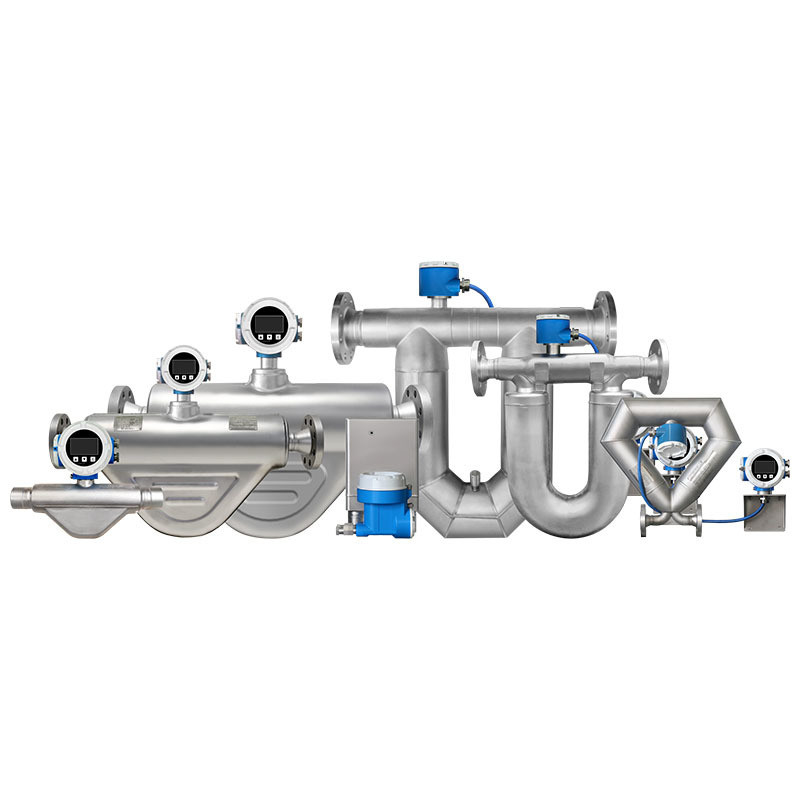

high precision Coriolis mass flowmeter of LNG application

All Category

Other Products

Mrs. Emma

shixr@hqhp.cn

+8615928541573

Contact Now

high precision Coriolis mass flowmeter of LNG application

Detail Information

Product Description

Detail Information

Product Name:

Coriolis Mass Flow Meter

Precision Degree:

High

OEM:

Yes

Certifications:

ATEX CCS IECEx And PESP

Pressure Degrees:

35Mps 70Mpa

Repeatability:

Excellent

Product Description

The flowmeter is an intelligent meter with digital signal processing as the core, thus a dozen of parameters can be outputted for user according to the three fundamental quantities above. Featured with flexible configuration, strong function and high cost perfomance, the Coriolis Mass Flowmeter is a new generation of high-precision flow meter. Coriolis Mass Flowmeter is a new generation of high-precision flow meter, which is flexible configuration, powerful function and high cost perfomance.

Product features
Specifications
Ask now

Product features

It passed ATEX, CCS, IECEx and PESO certificates.

Coriolis mass flowmeter

● It can be used to directly measure the mass flow rate of fluid in pipeline without the influence of temperature, pressure and flow velocity.
● High accuracy and excellent repeatability. Wide range ratio (100:1).
● Cryogenic and high pressure calibration is employed for high –pressure flowmeter. Compact structure and strong installation interchangeability. Small pressure loss and wide range of working conditions.

● The hydrogen mass flowmeter has excellent small flow measurement performance, which can fully meet the working conditions of the hydrogen dispensers. There are currently two types of hydrogen mass flowmeters: 35MPa and 70MPa (rated operating pressure). Due to the high safety requirements of hydrogen flowmeter, we have obtained the IIC explosion-proof certificate.

Technical Parameters

Model	AMF006A	AMF008A	AMF025A	AMF050A	AMF080A
Measuring medium	Liquid, Gas
Medium temp. range	-40℃~+60℃	-196℃～＋70℃
Nominal diameter	DN6	DN8	DN25	DN50	DN80
Max. Flow-rate	5kg/min	25 kg/min	80 kg/min	50 t/h	108 t/h
Working Pressure range(Customizable)	≤43.8MPa / ≤100MPa	≤4 MPa	≤4 MPa	≤4 MPa	≤4 MPa
Connection Mode (Customizable)	UNF 13/16-16, Internal thread	HG/T20592 Flange DN15 PN40(RF)	HG/T20592 Flange DN25 PN40 (RF)	HG/T20592 Flange DN50 PN40 (RF)	HG/T20592 Flange DN80 PN40(RF)
Safety and Protection	Ex d ib IIC T6 Gb IP67 ATEX	Ex d ib IIC T6 Gb IP67 CCS ATEX	Ex d ib IIC T6 Gb IP67 CCS ATEX	Ex d ib IIC T6 Gb IP67 CCS ATEX	Ex d ib IIC T6 Gb IP67 CCS ATEX

Model	AMF015S	AMF020S	AMF040S	AMF050S	AMF080S
Measuring medium	Liquid, Gas
Medium temp.range	-40℃～+60℃
Nominal diameter	DN15	DN20	DN40	DN50	DN80
Max.Flow-rate	30kg/min	70kg/min	30 t/h	50 t/h	108 t/h
Working Pressure range (Customizanle)	≤25MPa	≤25MPa	≤4 MPa	≤4 MPa	≤4 MPa
Connection Mode (Customizanle)	(Internal thread)	G1(Internal thread)	HG/T20592 Flange DN40 PN40 (RF)	HG/T20592 Flange DN50 PN40 (RF)	HG/T20592 Flange DN80 PN40 (RF)
Safety and Protection	Ex d ib IIC T6 Gb IP67

Application Scenario

CNG Dispenser Application, LNG Dispenser Application, LNG Liquefaction Plant Applic, Hydrogen Dispenser Applicatio, Terminal applica.
