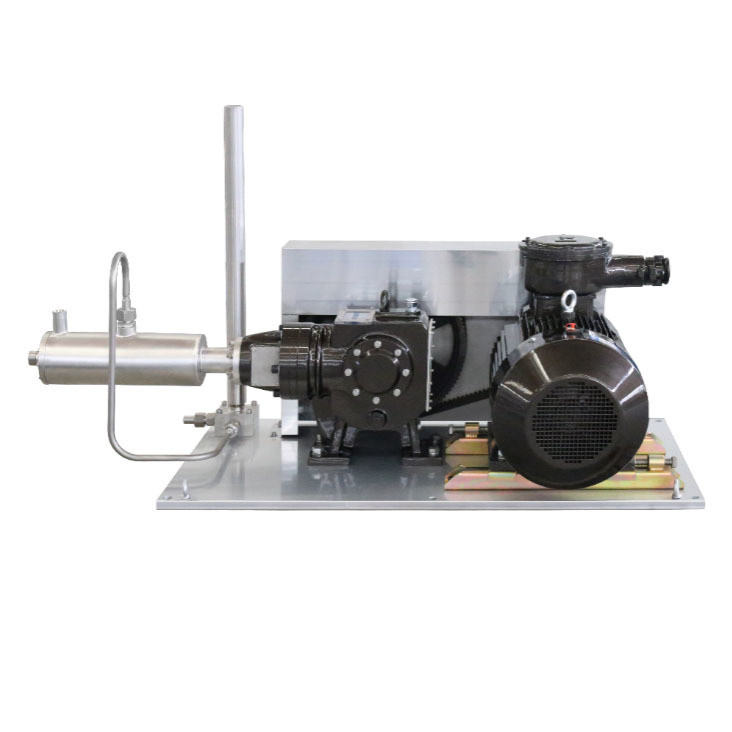

Cryogenic reciprocating pump of LCNG pump skid

Detail Information

Product Description

Detail Information

Product Description

It is applicable to cryogenic high-pressure pressurization system to pressurize medium for use.

Product features
Specifications
Ask now

Product features

Pump piston ring and sealing ring made of cryogenic filled with special PTFE material, with long service life characteristics.

Cryogenic reciprocating pump

● The surface of the piston rod and cylinder sleeve are processed by special process to improve the surface hardness of the sealing surface by 20% and increase the service life of the seal.
● Pump cold end part is provided with leak detection device to ensure the use of security and reliability.

● Apply rolling friction for Connecting rod and Eccentric wheel, effectively solve the problem that the transmission side disable to drive.
● Transmission box is provided with the oil temperature detection online alarm device, to ensure the safety of lubrication.
● Adopt never fail high vacuum insulation layer to ensure high efficient running.

Specifications

Model	LPP1500-250	LPP3000-250
Medium temp.	-196℃~-82℃	-196℃~-82℃
Piston diameter/stroke	50/35mm	50/35mm
Speed	416 r/min	416 r/min
Drive ratio	3.5:1	3.5:1
Flow	1500 L/h	3000 L/h
Suction pressure	0.2～12 bar	0.2～12 bar
Max. Working Pressure	250 bar	250 bar
Power	30 kW	55 kW
Power supply	380V/50 Hz	380V/50 Hz
Phase	3	3
Amount of cylinders	1	2

Application Scenario

LNG pressurization of L-CNG station.

mission

Efficient use of energy to improve the human environment
